Studio Perspectives
The Salesforce B2C Commerce Development perspective defines a selection of views and their layout within the UX Studio window. While creating a storefront, you will work primarily in this perspective. However, several perspectives are available.

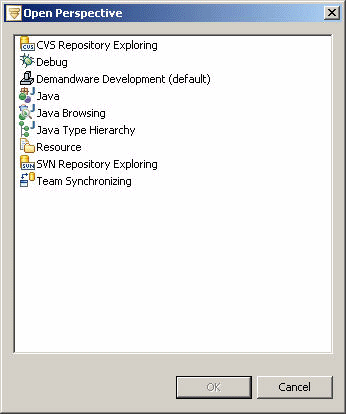

- To change the perspective
- Click Window > Perspective > Open Perspective > Other.
- Select a different perspective.
B2C Commerce Development Perspective
The B2C Commerce Development perspective is initially configured with:
| View | Use for... |
|---|---|
| Cartridge Explorer | Navigating cartridge contents. |
| Editor area | Editing pipelines, scripts and templates. |
| Outline |
Viewing and navigating pipeline outlines as well as scripts and templates. In the case of a pipeline, it shows the entire pipeline, which is useful for navigating large pipelines. |
| Properties | Viewing and editing the properties of the currently selected object. |
| Problems | Viewing errors and linking to them in the source. |
| Console | Viewing processing steps. |
The Commerce Cloud Development perspective also includes the following views:
| View | Use for... |
|---|---|
| Navigator | Exploring project file structures. All projects in your workspace are presented here. |
| Pipelets | Providing an alphabetical list of all pipelets, based on filter settings. Click a column to sort by that field. |
| Pipelines | Providing an alphabetical list of all pipelines, based on filter settings. Click a column to sort by that field. |
| Scripts | Providing an alphabetical list of all scripts, based on filter settings. Click a column to sort by that field. |
| Templates | Providing an alphabetical list of all templates, based on filter settings. Click a column to sort by that field. |
The Search filter is accessible via the popup menu icon (arrow) in the corner of each view. With this filter, you can find specific items by character, string or string end. You can also search by name, group, type, path or cartridge, depending on the item.

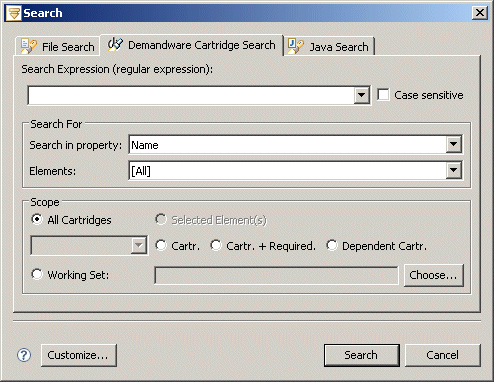

Search Dialog Box
Click the Search > File menu, then click the B2C Commerce Cartridge Search tab to perform a more detailed search.
For this dialog box, you can:
- Search using an expression.
- Search by property or element.
- Search all or selected cartridges.
- Create a working set, within which to search.
