Setting Breakpoints
You can set breakpoints before or after you launch a debug session and you can remove breakpoints while a debug session is in process.
- Open a script file with a
.js
or.ds
extension to debug in the Studio Commerce Cloud Script Editor or the JSDT editor (which is the default JavaScript editor for Eclipse).You can modify your Eclipse preferences to make the Commerce Cloud Script Editor you default JavaScript editor if you want to use the auto complete feature for the Salesforce B2C Commerce Script API.Note: Starting in 17.3, UX Studio enables you to set breakpoints in script files regardless of the location of the script file relative to the cartridge path. Previously, the script's cartridge had to be on the Site's cartridge path for the breakpoint to be registered with the script engine. - Double-click in the white column to the

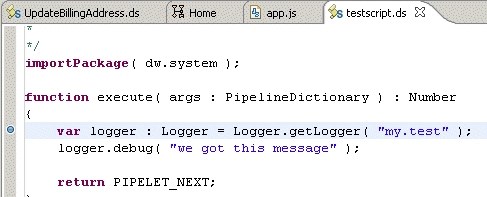

left of the code where you want to set your breakpoint. A break point
appears as a blue circle next to the closest appropriate place for a
break. For example, if you click next to a curly brace, the breakpoint
is inserted after the brace.Note: The overlay to a breakpoint image indicates that it's installed in the remote server. If the overlay icon is not there, then either the script debugger isn't running, or the script is not in the server's cartridge path.
Breakpoints appear in three states:
-
- a breakpoint when initially set.
-
- a breakpoint when the script is stopped at the breakpoint
-
- a breakpoint when it's successfully registered with the debugger. When you start the debugger, all breakpoints should have a check mark. If a breakpoint isn't successfully registered, usually because the debugger can't locate the script, the breakpoint appears as initially set. If the script completes and one or more breakpoints appear as initially set, then there is an issue with the communication with the server or the cartridge isn't in the server's path.
